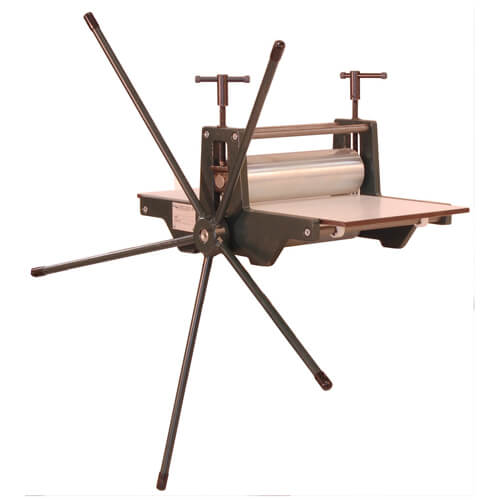

Polymetaal Etching Press JH-30
Bed size 30 x 60cm
Overall dimensions L: 51cm x W: 42cm x H: 35cm
82cm diameter star wheel
This press is driven directly on the lower roller.
The relatively small size of this press and the fact that the rollers are provided with ball bearings makes a gearing system unnecessary. The hard synthetic plate is guided on both sides by the solid steel frame. If the spindles are loosened the upper roller is raised by spring pressure. This results in a space appearing between the upper roller and the bed plate thus facilitating the sliding of the printing sandwich. The printing of lino and wood cuts is also possible because of the above mentioned spring pressure. It is possible to dismantle the star wheel which is secured with a key joint. Shims of leather or cardboard can be placed under the spindles thus providing more flexibility during printing. (useful while printing woodcuts that are not quite plane) .
Blankets - Polymetaal recommend either a 2mm or 3mm pressed wool blanket with this press. If you want to use the press for embossing then multiple layers are required. In standard use if you use more blankets than necessary you will have to set a higher pressure for the same result. The 2mm blanket costs £12 inc. VAT (£10 excl. VAT) and the 3mm costs £15 inc VAT (£12.50 excl. VAT) - if you would like these added to your press order please email email@example.com and we can send you an additional invoice.
Polymetaal Press JH-30 without stand @ £1296 inc. VAT (£1080.00 excl. VAT)

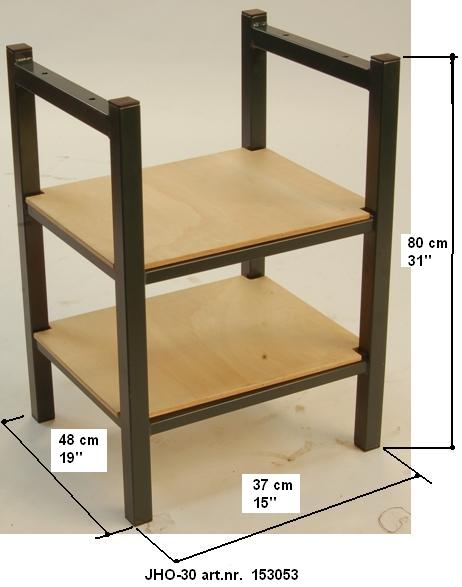

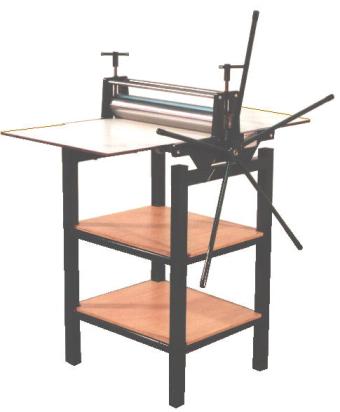

Polymetaal Press JH-30 with two shelf stand @ £1656 inc. VAT (£1380.00 excl. VAT)
Polymetaal Press JH-30 with two shelf stand and castors @ £1788 inc. VAT (£1490 excl.VAT)
Lead time can vary depending on stock levels in The Netherlands. Carriage is an additional cost to your location (at current times depending on your location it is approximately £320 plus VAT) - you will be invoiced for this separately. If you would like a quote before purchase please email firstname.lastname@example.org).
